A meteorological radiosonde is an interesting little device. Suspended beneath a large weather balloon, it rises through the atmosphere, measuring temperature, humidity and pressure while transmitting its position and measurement data to a ground station. When the balloon eventually bursts, the radiosonde descends under a parachute. For meteorologists, that is more or less the end of the story. For radio amateurs and radiosonde hunters, however, it is where the more exciting part begins: the instrument has to be found and recovered. And that can sometimes be rather more difficult than expected.

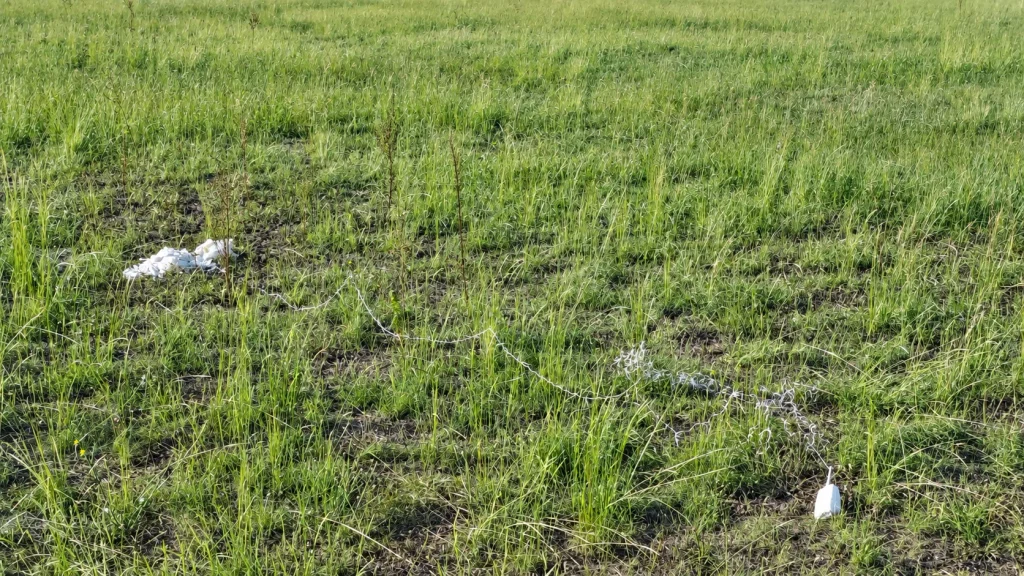

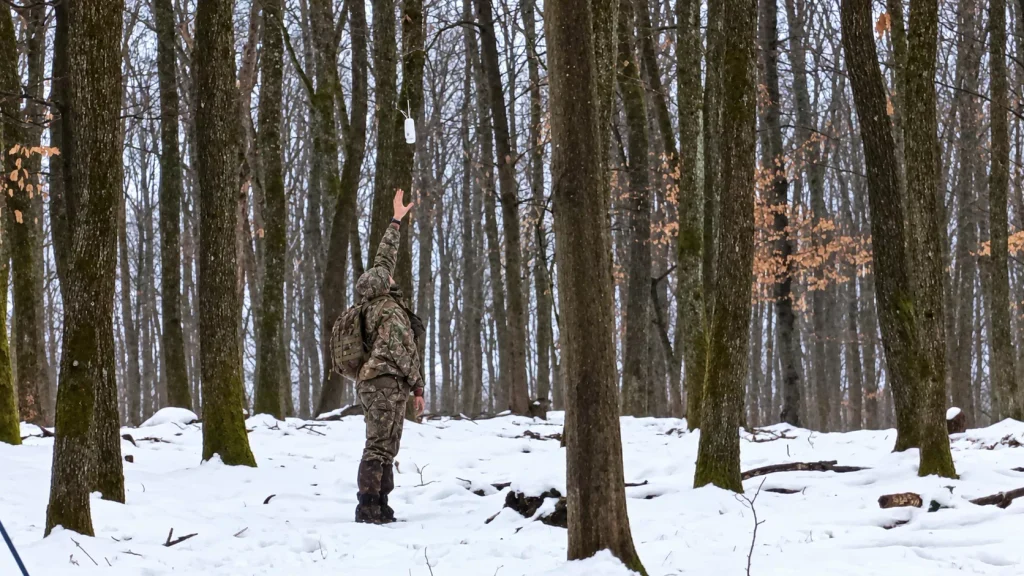

Finding one is occasionally very easy. The sonde is lying in a field, with the line, parachute and remains of the balloon beside it. You can see it from a distance; all you have to do is pick it up. At other times, however, nature decides to leave the sonde hanging in the crown of a tree, buried in dense undergrowth or caught on a roof snow guard. The sonde is up there; while it is still transmitting, locating it may be straightforward, and you may even be able to see it — but you cannot reach it.
This is usually the point at which the radiosonde hunter spends a long time staring at the tree, followed by an equally thoughtful inspection of what fishing-tackle shops have to offer.
It Is Not the Sonde You Need to Reach, but the Line
A radiosonde usually does not get caught by itself. More often, the suspension line, parachute or remnants of the balloon become wrapped around a branch or other obstacle, leaving the instrument hanging below. Sometimes it can be pulled down relatively easily. At other times, recovery is only possible by cutting the line.
There is no need — and certainly no good reason — to climb the tree. A good telescopic carbon-fibre fishing rod or pole is light, relatively inexpensive, provides considerable reach and is easy to transport when collapsed. All that is needed is a suitable tool at the tip to catch or cut the line.
A small cutting head for this purpose is straightforward to make using a 3D printer. Keeping it small and light is important: excessive mass at the tip makes a long telescopic rod bend, oscillate and become difficult to control. Tying a Swiss Army knife to the end is not a sensible alternative. It does not work particularly well, although it can accidentally be thrown surprisingly far that way. If the cutting head is too heavy, the rod bends and vibrates, positional control becomes poor and, instead of cutting anything, you simply end up waving the whole arrangement around in the air.
The Basic Idea: Hook and Blade
The simplest practical solution combines a small hook with a blade. The hook is used to catch the radiosonde suspension line. You can first try to pull the sonde down gently without cutting anything; if that fails, the blade can then be used to cut the suspension line.
One useful technique when attempting to free a line from a tree is not to apply continuous force. Instead, pull it perhaps 0.5–1 metre, as far as it will move comfortably, then allow the line to slacken before pulling again. This repeated loading and unloading can help free the line from small branches and twigs, allowing the sonde gradually to work its way down.
If that fails, it is time to use the blade. Do not hack at the line. Use a controlled pulling cut instead. A hook blade — the type commonly used in utility knives for cutting carpet, linoleum and similar materials — is extremely sharp and draws the material into the cutting edge. One firm pull is usually sufficient to sever a thin synthetic suspension line.
A replaceable blade is preferable because synthetic cord, dirt, bark and other contamination can dull or damage a cutting edge surprisingly quickly.
The 3D-Printed Tool
The tool shown here is a 3D-printed cutting head designed specifically for radiosonde recovery. The body is printed in orange ABS. The bright colour makes the tool conspicuous, while the finished part remains light enough for use at the end of a long telescopic pole. It is also large and visible enough not to disappear instantly into grass, leaf litter or undergrowth if dropped.
It has a hook for pulling or adjusting the radiosonde’s line, parachute or balloon remnants. It also has a hooked utility blade for cutting. The blade is held in place by an M3 screw, which also serves as the pivot pin of the locking mechanism. The blade clicks into two positions: retracted for transport or hooking, and extended for cutting.
The ends of fishing rods usually have no mounting point at all, only the bare carbon-fibre tip, about ∅1.5–2 mm in diameter. For this reason, I designed the attachment with a tapered, screw-tightened, collet-type clamp. The cutting head is pushed over the pole tip and the screw tightened, causing the clamp to grip the carbon-fibre section securely.
The small hole in the body is not decorative either. A cord can be attached here as a safety tether if there is any doubt about the security of the attachment. The cord can also provide some additional control — for example, in windy conditions when accurately positioning the cutting head becomes difficult — and a loop can be attached to it for snagging or retrieving objects.
Safety First!
A sharp blade mounted at the end of a long pole is potentially dangerous. Do not use the tool near people, animals, vehicles, greenhouses or other objects that could be damaged. The blade itself must be secured extremely well. If it comes loose — or if a telescopic section suddenly collapses because it has not been locked correctly — the blade can fall and cause serious injury.
There is an even more important hazard: electricity. A carbon-fibre fishing rod conducts electricity extremely well. It must not be used near electrical transmission lines, within a radius of 30 metres. It can cause a fatal electric shock. It does not even have to touch the wire: because of electric field concentration at the tip, a high-voltage transmission line can arc over from several metres away, and if you are at the other end of the rod, your family will receive what remains of you in a small box of ashes. A long conductive pole raised into the air is something you emphatically do not want to be holding when lightning is nearby.
If the radiosonde or its suspension line is caught on an electrical conductor, do not touch it and do not attempt to retrieve it. This is not merely “a little dangerous”; it is firmly in the do not even try category. Nor should you rely on the suspension line being made of plastic. Wet or contaminated line and attached components may provide an electrical path, and there is no safe reason to test the theory personally. Contact the electricity network operator and report the object instead. The sonde may still eventually be recoverable; the professionals who remove it might even hand it over afterwards. A long conductive pole raised into the air is something you emphatically do not want to be holding when lightning is nearby.
The radiosonde is light, but if it falls from a height of 7–8 metres, it can still hit hard. It can be unpleasant if it lands on someone’s head. Before cutting it down, it is worth checking where the device will fall. The antenna and the temperature probe protrude from the sonde, and these can cause serious eye injuries if they hit you. In addition, all kinds of debris, twigs and pieces of bark can fall from the tree. For this reason, safety glasses are a good idea.
Law and Common Sense
Radiosonde hunting is not purely a technical exercise. Do not enter private property without permission. Do not climb over fences. Do not damage crops, trees, birds’ nests, roofs, utility equipment or other property.
If recovering the sonde would create a significant risk of injury or damage, leave it where it is. Radiosonde hunting is an enjoyable hobby precisely because it combines radio technology, meteorology, navigation, map reading and practical field problem-solving. But a successful expedition does not require recovering the instrument at any cost. Sometimes the best decision is simply to photograph it, record the location, and accept that this time the tree has won.
Summary
A fishing-pole-mounted radiosonde line cutter is a remarkably simple tool. It requires no sophisticated electronics, microcontroller or artificial intelligence — just a lightweight telescopic pole, a blade, a 3D printer and a little patience. If everything goes according to plan, the sonde comes down, the pole remains intact, the tree remains undamaged, nobody falls into a ditch, and another small white instrument ends up on the workbench — one that, only hours earlier, may have travelled high into the stratosphere. That alone is a good enough reason to occasionally mount strange things on the end of a fishing rod.
The STL files required to 3D-print the tool can be downloaded from Printables: https://www.printables.com/model/1701737-pole-mounted-radiosonde-line-cutter
